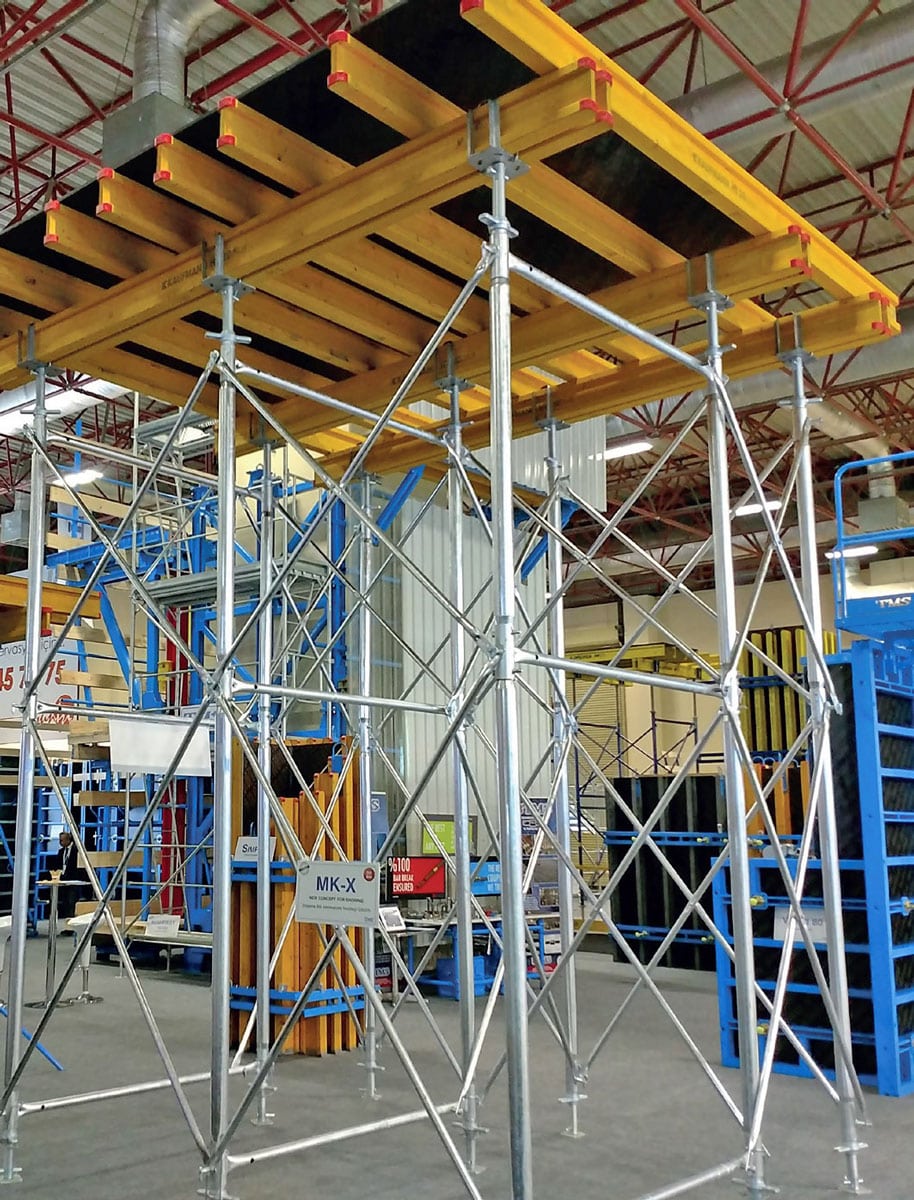

MK-X System is a versatile scaffolding system which consists of standards, cross bracing, adjustable spindles at the base & top and HT20 timber beams which can be used as formwork scaffolding, table form, temporary supports for heavy loads, etc.  It saves from labor and crane usage by providing fast cycle periods when used as table formwork. When it’s used as single or continuous tower scaffolding, it satisfies the need of high and heavy slab formwork with its high load capacity. With MK-X system components, it is possible to create table forms with various dimensions and load capacities.

MK-X system can be used with confidence in bridge constructions, high-rise buildings and industrial buildings due to its wide implementation area.

• MK-X system is designed to be able to transfer loads acting on the top to the base with a solid foundation or to a system that is strong enough to carry the loads. The difference of MK-X from the other load bearing systems is that it can be used for heavier weights as it consists of larger profiles than the other systems.
• MK-X system consists of two types of ledgers which have flange and frame connections, and the main difference between these two types are the connection details of ledgers. In the framed type, ledger as a single frame unit with its vertical tubes at the ends is mounted to the standards only by holding up on and drop down, while in flanged type the joint, as can be understood by the name, has a flange that a wedge can be placed on. TMS’s KAM’A ledger can be placed on this flange with a small touch of hammering.
• After a suitable platform is formed on the ground, the mounting on this platform can be done easily.
• Safety rails are available on the edge zones and wide gallery spaces.
• It’s easy to assemble & dismantle in order to form table modules of different dimensions, and easy to store and transfer.
• MK-X towers that are joined by table form bracing MK-C rise so that it ensures its own stability. MK-X standards are assembled by joining each other with the help of splice elements. The dimensions of the splice elements are designed as per TS EN 12812 regulations, produced with 20 cm length to prevent unwittingly dismantling. Connection elements such as bolts, pins with R-pins can be supplied if necessary.
• MK-X can become one piece with the help of framed type ledgers. It can be shifted without dismantling, by means of tower crane or table shifting vehicle which speeds up the work.
• MK-X system can be assembled from components of various dimensions and sizes. Thus, towers and table forms of various dimensions and heights can be succeeded by approved statical calculations.
