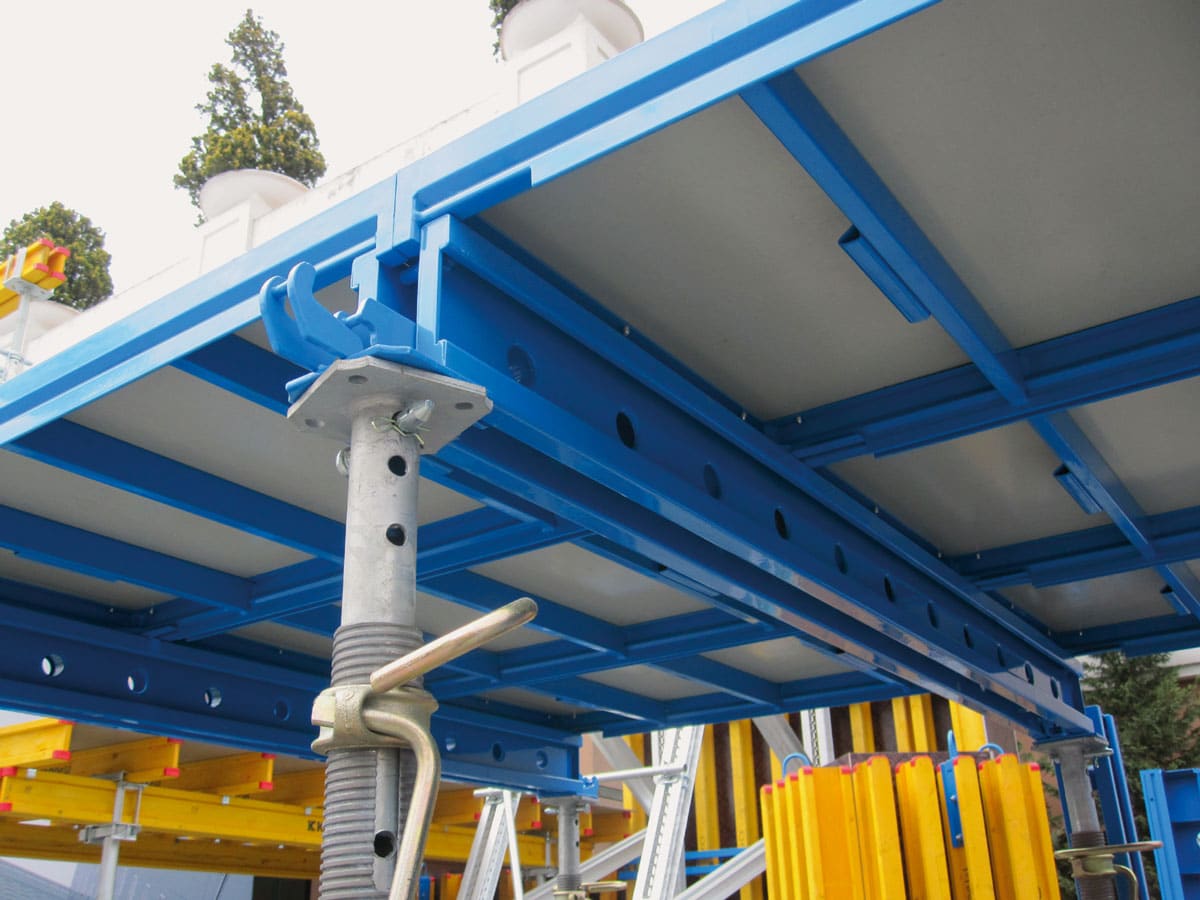

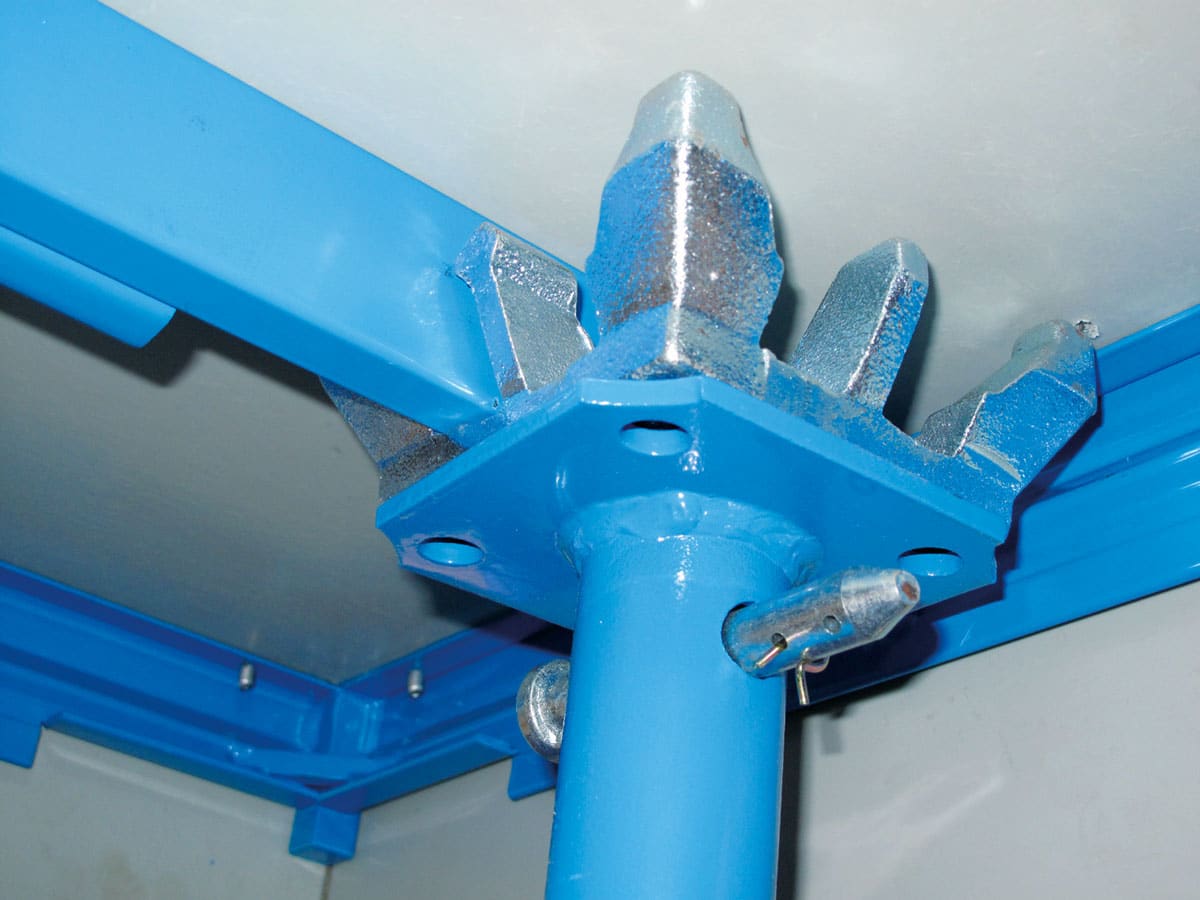

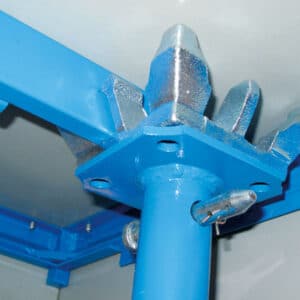

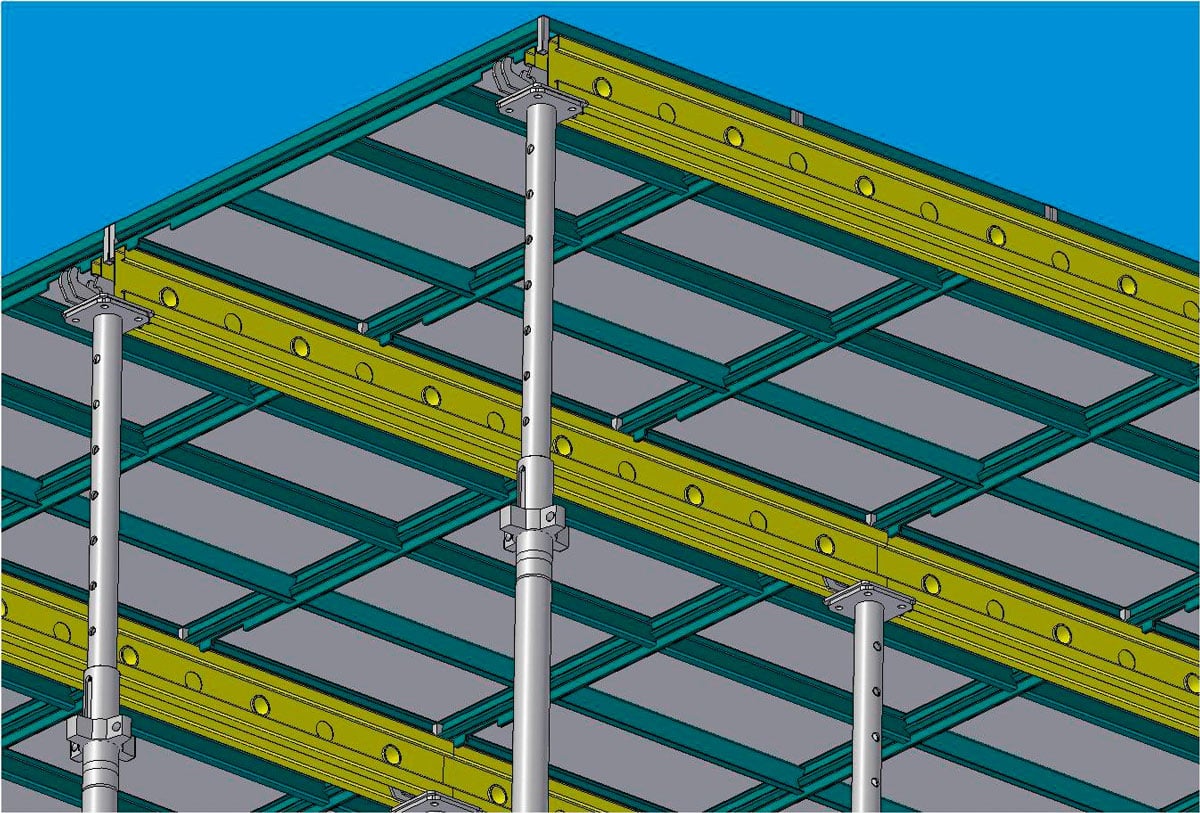

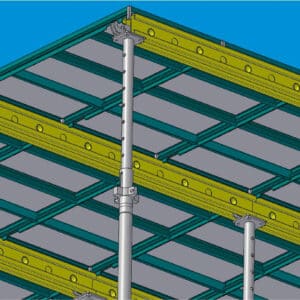

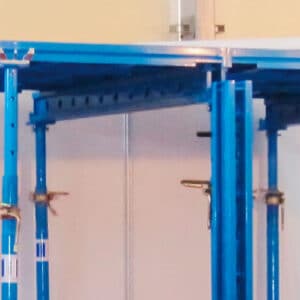

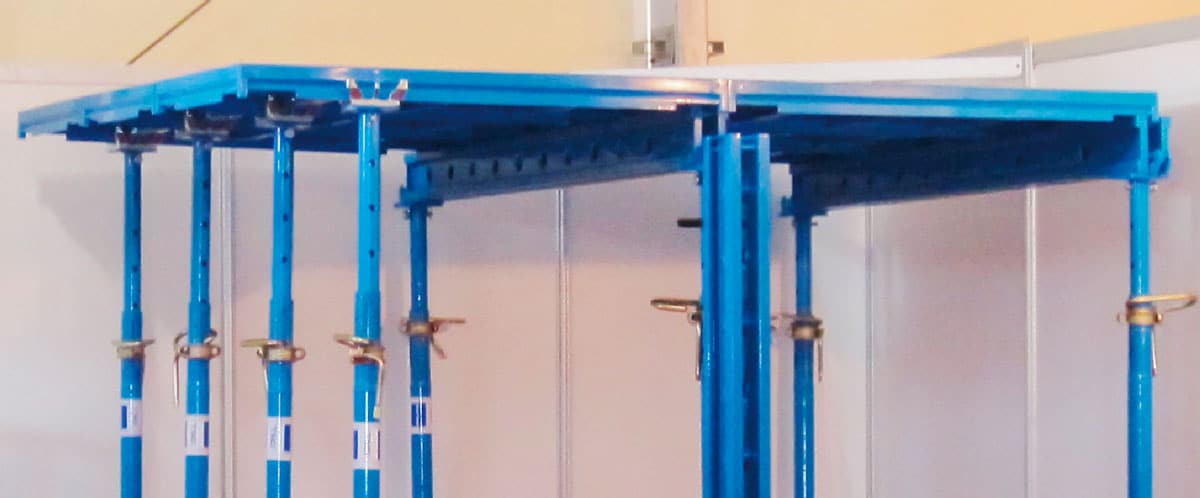

The system allows with only few parts a wide range of different slab formwork systems, to adapt optimally to the construction site, e.g. for each construction project and any floor plan the most appropriate and economical method whether residential or large areas. The design of the entire system has been carried out so that up to 30 cm thick slabs can be formed with the standard parts in compliance with the deflections to DIN 18202 line 7.
For this system the prop load is always less than 20 kN. For the beginning of the setting of the formwork in a corner and for the compensation ranges no additional support is required. The panels consists of special steel profiles with a 10 mm thick polypropylen plate, 60 x 120 panel <16 kg.
