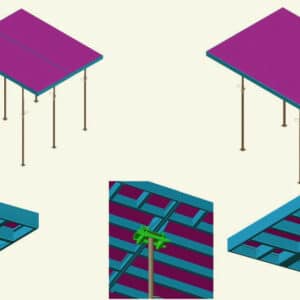

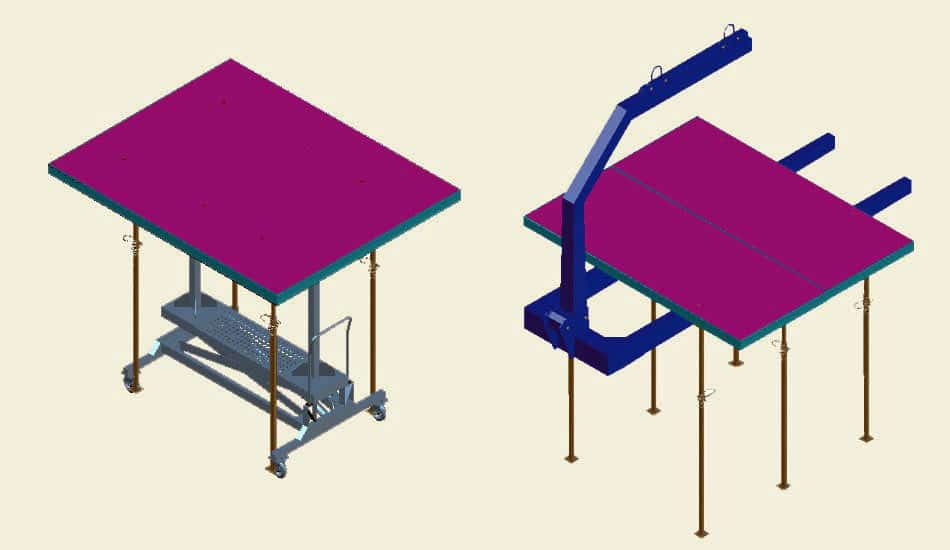

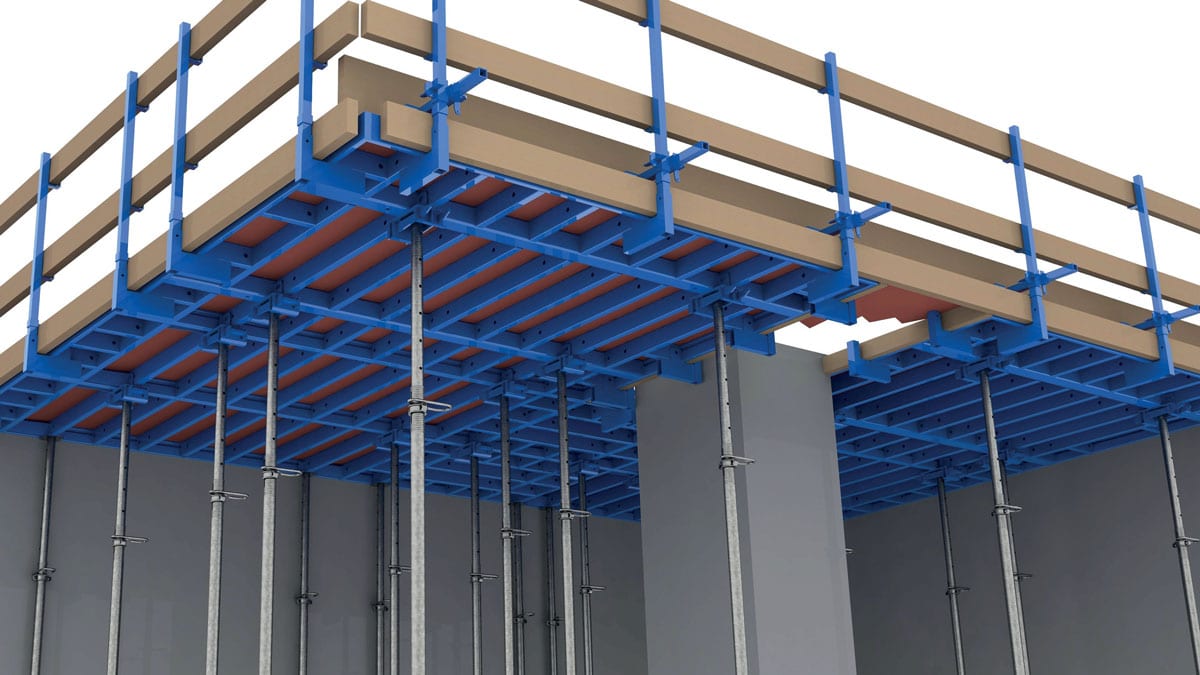

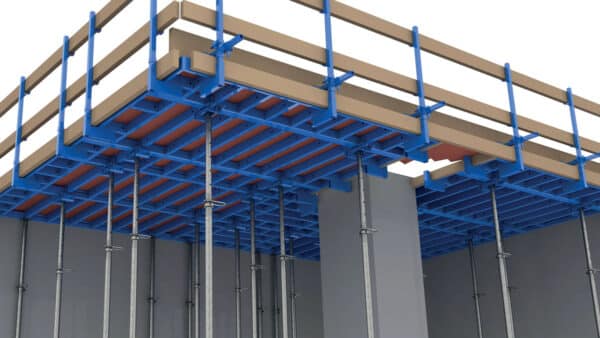

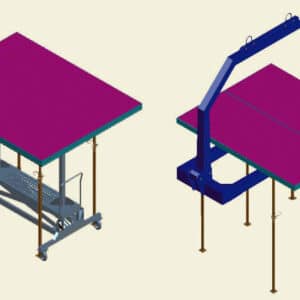

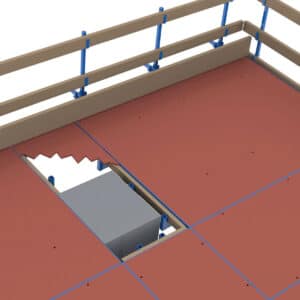

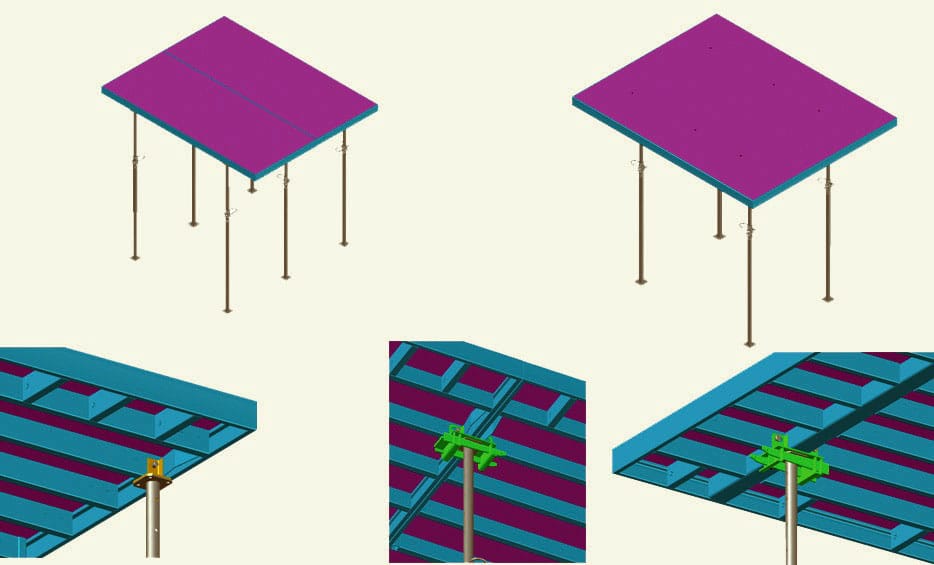

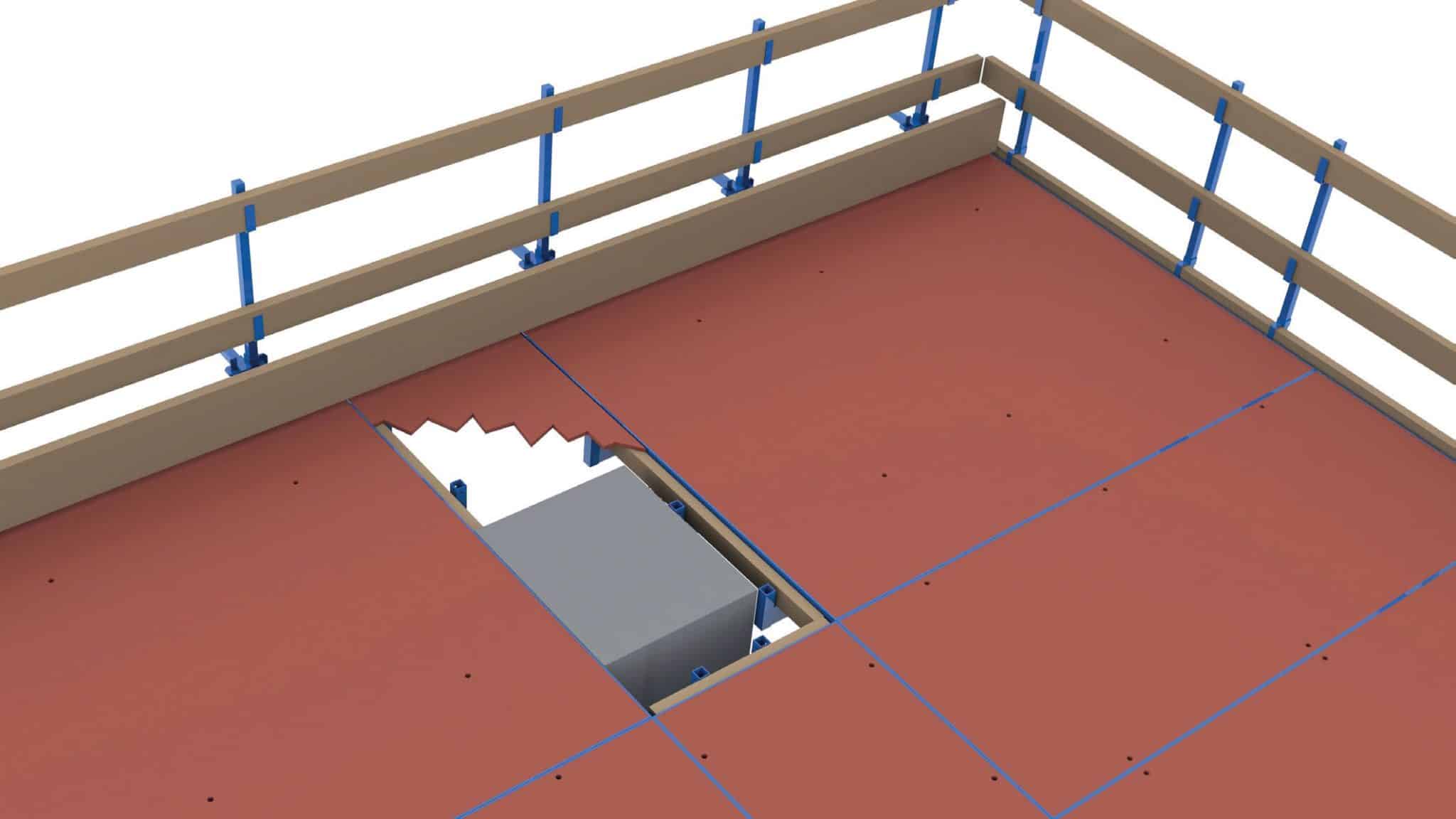

The VINC’I DECK system is a specially designed slab formwork system to provide alternative solutions. The system aims to use TMS’s VINC’I 70 steel panel formwork in reinforced concrete flooring systems, up to a certain thickness, by using specially designed multifunctional adapters and telescopic props. VINC’I 70 wall formwork panels are designed to withstand 70kN/m² of fresh concrete pressure. Telescopic props can be locked under these panels by a simple hammer and the help of special wedge heads. There are also special adapters to connect the props near the wall edges. Thanks to the multi-adapter, it is possible to connect the guard rail posts on the slab foreheads, support the stop end formwork, and adjust the formwork distance. By using the extension adapter, a work platform can be erected, on which workers can walk around and store low loads for a short time during operations to be carried out on the slab edges. At the same time, with the help of this part, it is possible to carry the concrete load by supporting formwork in places where the formwork panel cannot fully fit.
